Title: Acidblur Effect

Author: Gareth Noyce (www.korruptor.demon.co.uk
Submission date: September 13, 2002

Description: An 'Acidblur' effect using pygame.transform and Numeric.

Download: acidblur.zip

pygame version required: Any with Surfarray
SDL version required: Any
Python version required: Any with Numeric

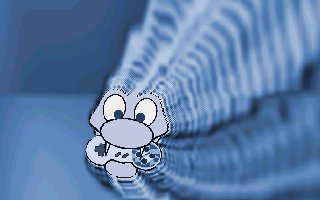

Comments: Acidblur is another aggressively-commented effects script from Gareth Noyce. This is a pretty well-known effect, and is produced by a combination of blurring and zooming transforms. Mr. Noyce has thoughtfully included a sample graphic of pygame mascot Monty, so you can see the effect in action.

Messages: 4


"""
Program		:	Acid Blur (not that I'd know)
Author		:	Gareth "Korruptor" Noyce (Home)
Depend		:	Numeric, Pygame with Surfarray
Description	:

    This is probably familiar to anyone who uses iTunes or Winamp visualisations,
and it's another *really* easy one.

Basically, a four step process:

1) Scale the display surface
2) Blur the scaled surface
3) Draw something onto the blurred, scaled surface
3) Blit the central portion of this to the display

I'll leave out the goto 1 ;-)

The blur is a basic convolution, as demonstrated by Pete in his excellent Surfarray
tutorial. The only thing here that's new is our use of pygame's transform functions
to scale the surface.

This is dedicated to slm, who seems to think I'm writing a visualisation library. :)
"""

import pygame, pygame.transform, pygame.image
from pygame.surfarray import *
from pygame.locals import *
from Numeric import *

# ------------------------------------------------------------------------------------
# Glob decs

# Screen resolution...
RES 	= array((320,200))
PI 	= 3.14159
DEG2RAD = PI/180

# -----------------------------------------------------------------------------------
def main():

    pygame.init()

    # Setup an 8bit screen...
    screen = pygame.display.set_mode(RES,0,8)

    # Load a sprite and setup the palettes and colorkey info
    sprite = pygame.image.load("sprite.gif")
    sprite.set_palette(sprite.get_palette())
    sprite.set_colorkey((0,0,0))

    screen.set_palette(sprite.get_palette())

    # This is our "working surface"...
    worksurf = pygame.Surface(RES,0,8)
    worksurf.set_palette(sprite.get_palette())


    # Angle deltas for sin/cos
    xd = 0
    yd = 0

    # Fruity loops...
    while 1:
        # Have we received an event to quit the program?
        for e in pygame.event.get():
            if e.type in (QUIT,KEYDOWN,MOUSEBUTTONDOWN):
                return

        # Calculate a new x/y position for the sprite...
        x    = ((RES[1]/4))*cos((xd*DEG2RAD) * 2.75)
        y    = ((RES[1]/4))*sin((yd*DEG2RAD) * 1.13)

        # Increment the 'angles'
        xd  += 1.5
        yd  += 3

        # Scale the working surface up by 16px x 16px -- obviously
        # smaller values == a slower blur.
        worksurf = pygame.transform.scale(screen, (RES[0]+16,RES[1]+16))

        # Copy the surf array of the scaled surface to a temporary array
        tmp = pygame.surfarray.array2d(worksurf)

        # Workarr will contain the 'blurred' version of the scaled surface
        workarr = array(tmp)

        # This is exactly the same blur that's demonstrated in the Surfarray
        # tutorial by Pete Shinners. An 8px version would probably look a
        # little better, but it's no great shakes for this demo...
        workarr[1:,:]  += tmp[:-1,:]*8
        workarr[:-1,:] += tmp[1:,:]*8
        workarr[:,1:]  += tmp[:,:-1]*8
        workarr[:,:-1] += tmp[:,1:]*8
        workarr /= 33

        # Take the central portion of the scaled (and now blurred) array
        # and blit it to the screen. This creates an inward zoom...
        # If you change the blit offset, you can move the blur
        # e.g.: workarr[16:RES[0]+16,8:RES[1]+8].shape == left motion,
        # so moving them about a sine would be easy and look quite nice ;)
        blit_array(screen, workarr[8:RES[0]+8,8:RES[1]+8])
        screen.blit(sprite,(x+110,y+50))

        # show the results...
	pygame.display.update()

if __name__ == '__main__': main()

From: korruptor

Date: September 16, 2002 07:34 GMT

Er, the "sprite.set_palette(sprite.get_palette)" line isn't needed (obviously). That one just kinda slipped in there ;-)



From: JBF

Date: September 18, 2002 23:24 GMT

Hmm...seems to slow down A LOT even on slightly larger display surfaces...and I'm running an Athlon XP 2100+ and GeForce 3.



From: korruptor

Date: September 20, 2002 08:39 GMT

Scale the result of every frame up to increase the size of the effect. That'll stop some of the slow-down at the cost of chunky pixels.

It runs full screen at 640x480 quite happily with 2px chunky pixels on my TiBook. :-)



From: Korruptor

Date: October 25, 2002 21:22 GMT

Ok, I saw that "The Demo Effects Collection" has a "Shade Bob" effect in, and that's basically this effect minus the zoom. See the code below:

--

import pygame, pygame.transform, pygame.image
from pygame.surfarray import *
from pygame.locals import *
from Numeric import *

# ------------------------------------------------------------------------------------
# Glob decs

# Screen resolution...
RES = array((320,200))
PI = 3.14159
DEG2RAD = PI/180

# -----------------------------------------------------------------------------------
def main():

pygame.init()

screen = pygame.display.set_mode(RES,0,8)
sprite = pygame.image.load("sprite.gif")
sprite.set_palette(sprite.get_palette())
sprite.set_colorkey((0,0,0))

screen.set_palette(sprite.get_palette())

worksurf = pygame.Surface(RES,0,8)
worksurf.set_palette(sprite.get_palette())
xd = 0
yd = 0

# Fruity loops...
while 1:
for e in pygame.event.get():
if e.type in (QUIT,KEYDOWN,MOUSEBUTTONDOWN):
return

x = ((RES[1]/4))*cos((xd*DEG2RAD) * 2.75)
y = ((RES[1]/4))*sin((yd*DEG2RAD) * 1.13)
xd += 1.5
yd += 3

tmp = pygame.surfarray.array2d(screen)
workarr = array(tmp)

workarr[1:,:] += tmp[:-1,:]*8
workarr[:-1,:] += tmp[1:,:]*8
workarr[:,1:] += tmp[:,:-1]*8
workarr[:,:-1] += tmp[:,1:]*8
workarr /=33

offx = 16.0*cos(yd*DEG2RAD)
offy = 16.0*cos(xd*DEG2RAD)

offx = abs(int(offx))
offy = abs(int(offy))

blit_array(screen, workarr)
screen.blit(sprite,(x+110,y+50))

pygame.display.update()

if __name__ == '__main__': main()


----

Of course, you could shift the blur up to get something similar to Pete Shinner's fast flame, or rotate the surface, or... You get the idea. ;-)

Oh, and Pete has a faster blur, which I've lost. Apologies!
